Asp.Net Identity SQLite Provider on a Web Forms project

  Mostly, the tutorial or sample I found from googling was for MVC and C#. So I decided to install the Asp.Net.Identity.SQLite by following the guide from MVC then modify it to work for Web Forms then convert it to VB.

I'm using Visual Studio 2017.

Create a new ASP.NET Web Forms Site project, targeting .Net Framework 4.7.1

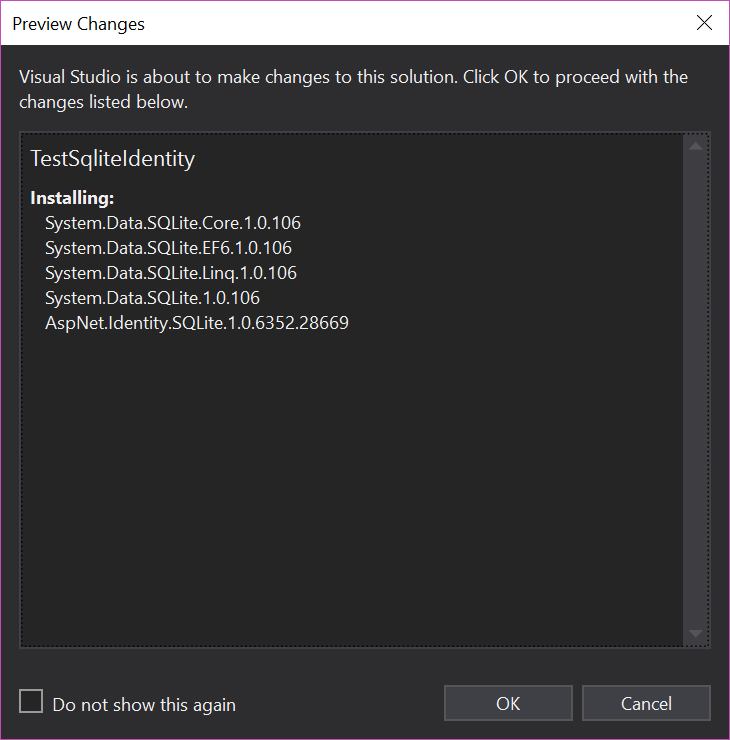

Install Nuget Package AspNet.Identity.SQLite

ok, and wait till finish installing

The Uninstall the Microsoft.AspNet.Identity.EntityFramework

Replace all text  Microsoft.AspNet.Identity.EntityFramework with AspNet.Identity.SQLite for the Current Project.

It should have 5 occurrence replaced

Create a new Sqlite database name Identity.db into the App_Data folder for the current project

Open a Query Editor for the Sqlite database, the run the sql query.
You can get the query from the package folder inside your solution folder "AspNet.Identity.SQLite.1.0.6352.28669\content\SQLiteIdentity.sql"

Execute the query

In the IdentityModels.vb, replace the whole ApplicationDbContext class:

Public Class ApplicationDbContext
    Inherits IdentityDbContext(Of ApplicationUser)

    Public Sub New()

        MyBase.New("DefaultConnection")

    End Sub

End Class

with this:

Public Class ApplicationDbContext

    Inherits SQLiteDatabase

    Public Sub New()

        MyBase.New("DefaultConnection")


    End Sub



End Class

The replace the UserManager class

Public Class UserManager

    Inherits UserManager(Of ApplicationUser)

    Public Sub New()

        MyBase.New(New UserStore(Of ApplicationUser)(New ApplicationDbContext()))

    End Sub




End Class

with this:

Public Class UserManager

    Inherits UserManager(Of ApplicationUser)

    Public Sub New()

        MyBase.New(New UserStore(Of ApplicationUser, IdentityRole)(New ApplicationDbContext()))

    End Sub

End Class

  Lastly, replace the default connectionstring in the web.config with this

  <connectionStrings>

    <add name="DefaultConnection" connectionString="Data Source=|DataDirectory|\Identity.db;Version=3;" providerName="System.Data.SQLite"/>

  </connectionStrings>

Done..

But, in case of error releted tu SQLite.Interop.dll when running, try following this step
Unable to load DLL 'SQLite.Interop.dll': The specified module could not be found
